Circuit diagrams in LaTeX – Using Circuitikz

Add neat circuit diagrams to your paper with circuitikz, extending tikz with electric components.


While Tikz offers many features and packages to create diagrams and all sorts of other drawings, it unfortunately lacks a good package to layout electric circuits. Using the package circuitikz we can easily solve this problem. It extends provides a new environment circuitikz in which we can easily draw our circuits in no time. The syntax is exactly the same as shown in the previous lesson, so we can directly start with a simple code example:

\documentclass{article}

\usepackage{tikz}
\usepackage{circuitikz}

\begin{document}

\begin{figure}[h!]
  \begin{center}
    \begin{circuitikz}
      \draw (0,0)
      to[V,v=$U_q$] (0,2) % The voltage source
      to[short] (2,2)
      to[R=$R_1$] (2,0) % The resistor
      to[short] (0,0);
    \end{circuitikz}
    \caption{My first circuit.}
  \end{center}
\end{figure}

\end{document}

This will create the following circuit diagram in our document:


The circuit will be drawn in the same way as a path in tikz, but we specify special options for the elements:

\draw (0,0)
      to[V,v=$U_q$] (0,2) % The voltage source

Starting at (0,0) we will draw a voltage source specifying the [V,v=$U_q$] options to the coordinates (0,2), where V chooses the symbol for a voltage source and the v=$U_q$ draws the voltage arrow next to it. Then we proceed to the resistor:

      to[short] (2,2)
      to[R=$R_1$] (2,0) % The resistor

We first must draw a short circuit from (0,2) to (2,2) and then put the resistor symbol on the path from (2,2) to (2,0) note that this time the label of the element must be specified directly (R=$R_1$).

A list of all available elements for circuits is available in the circuitikz manual.

But how can we add more elements to the circuit? Let’s say we want to add an inductor parallel to the Resistor. The easiest way is to add a new draw command like this:

    \begin{circuitikz}
      \draw (0,0)
      to[V,v=$U_q$] (0,2) % The voltage source
      to[short] (2,2)
      to[R=$R_1$] (2,0) % The resistor
      to[short] (0,0);
      \draw (2,2)
      to[short] (4,2)
      to[L=$L_1$] (4,0)
      to[short] (2,0);
   \end{circuitikz}

After compilation we’d get the following circuit diagram:


Adding a capacitor next to it, is just as simple:

    \begin{circuitikz}
      \draw (0,0)
      to[V,v=$U_q$] (0,2) % The voltage source
      to[short] (2,2)
      to[R=$R_1$] (2,0) % The resistor
      to[short] (0,0);
      \draw (2,2)
      to[short] (4,2)
      to[L=$L_1$] (4,0)
      to[short] (2,0);
      \draw (4,2)
      to[short] (6,2)
      to[C=$C_1$] (6,0)
      to[short] (4,0);
   \end{circuitikz}

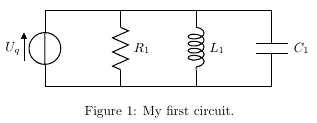

This would give us the following diagram:


The circuitikz manual provides examples of all symbols and functions and can also be used for further reference.

Summary

  • Circuitikz provides an environment to draw electric circuit diagrams
  • The syntax is similar to the plain Tikz syntax
  • A list of all symbols is available in the circutikz manual

Next lesson: 15 More Circuitikz
